Thanks to the recirculation system that reuses air not completely saturated with moisture, it significantly reduces fuel consumption and heat demand for the same processed volume.
Designed for large volumes and extended processing, with access points and inspection structures conceived to minimize downtime and allow safe operations even on large-sized dryers.
The FR Series is designed to continuously dry medium and large volumes of grain, ensuring high productivity, uniform treatment and consistent results even under prolonged working conditions.
Thanks to its special internal geometry, the hopper ensures the ideal flow of the grain and an optimal feed into the drying column.

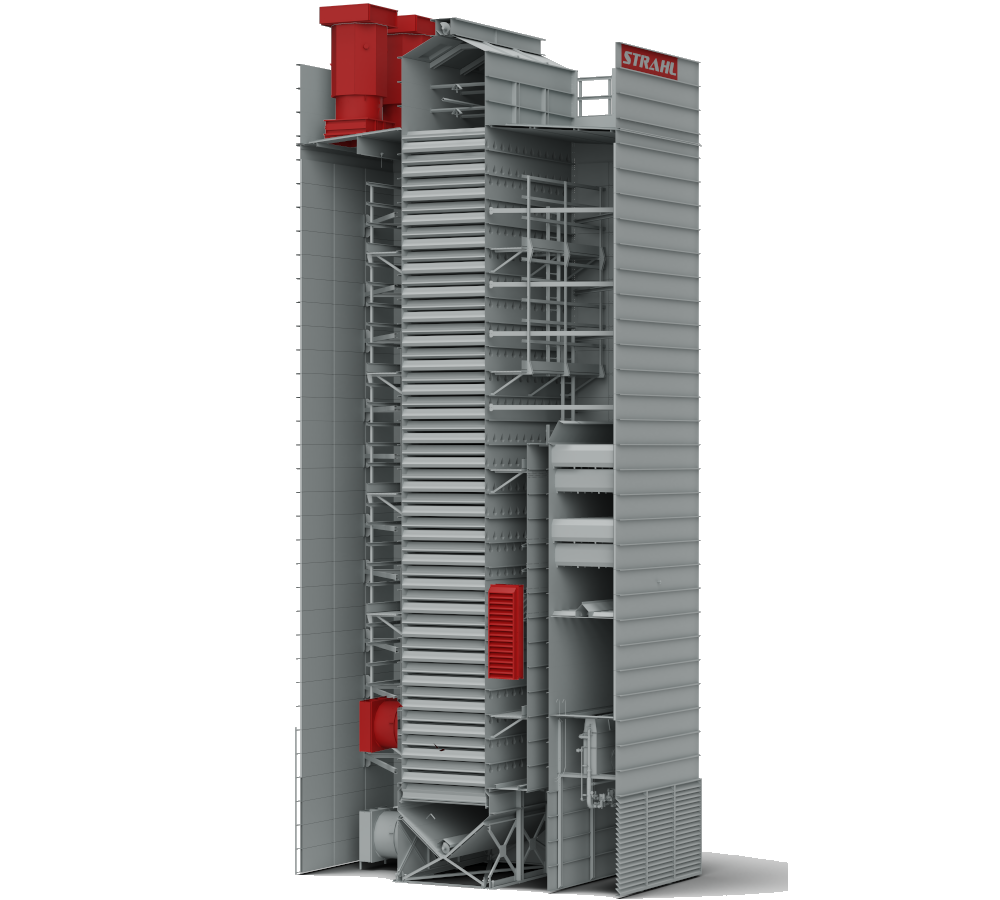

Placed on the opposite side of the burner, they work in suction mode, ensuring a uniform air flow. The fans are equipped with a silencer and a shutter to minimize acoustic and dust emissions into the environment.

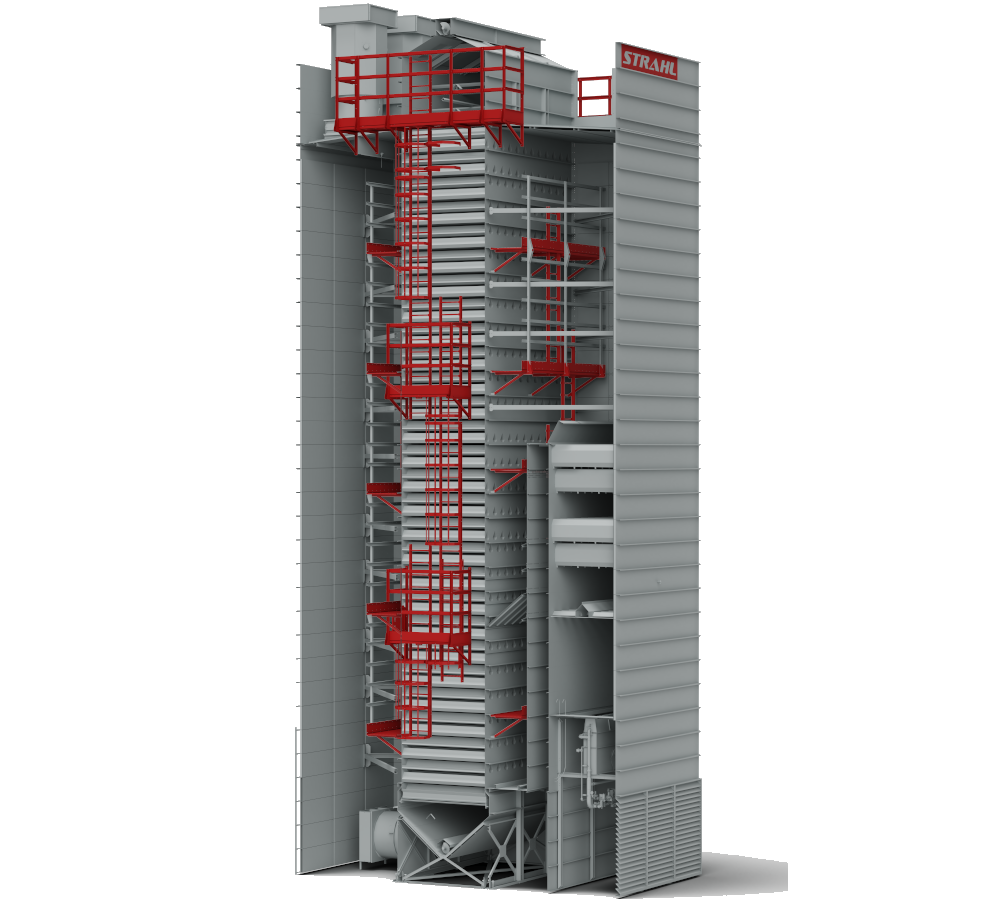

Fitted outside and inside the grain dryer, they provide safe and easy access for routine inspection and maintenance, ensuring maximum safety for operators.
The profile of the ducts is designed to facilitate the flow of the grain and heat exchange between the hot air and the grain to be dried.

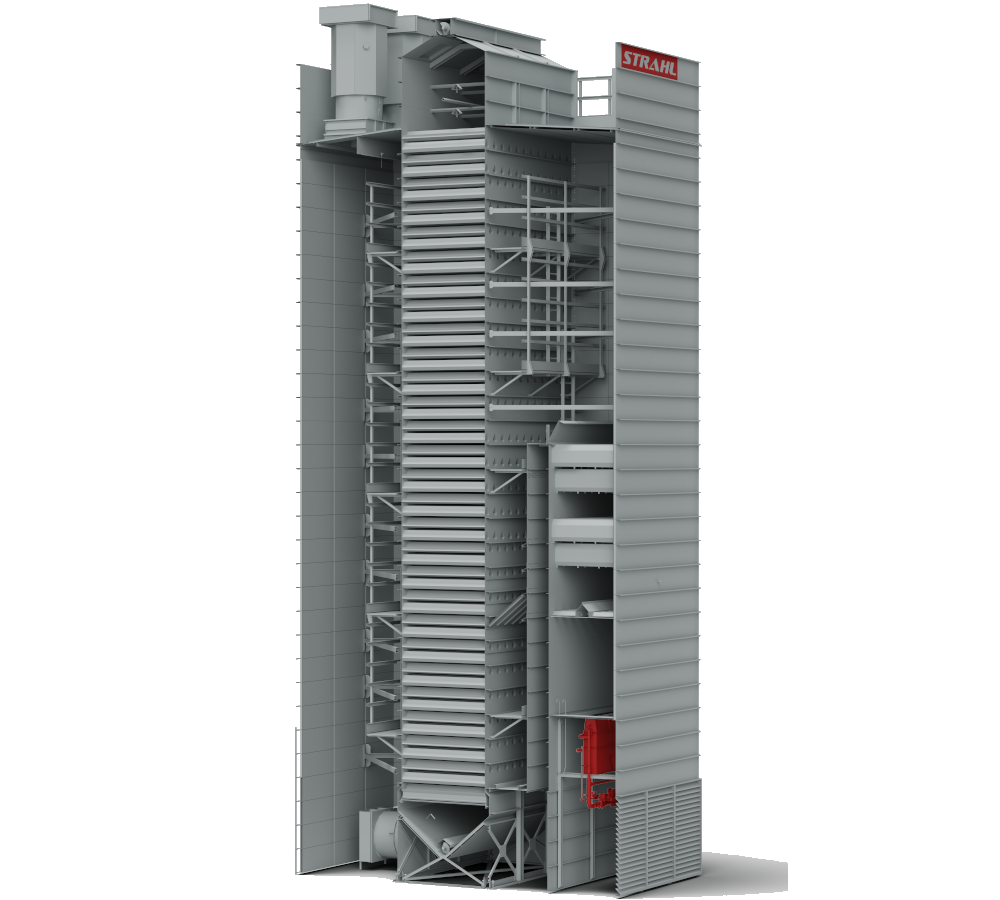

The inline burner, available for natural gas and LPG, ensures accurate modulation and air temperature uniformity. Also available in a diesel version.
Placed at the bottom of the dryer, the fans collect some of the hot air from the drying process to reintroduce it into the cycle and improve energy efficiency.

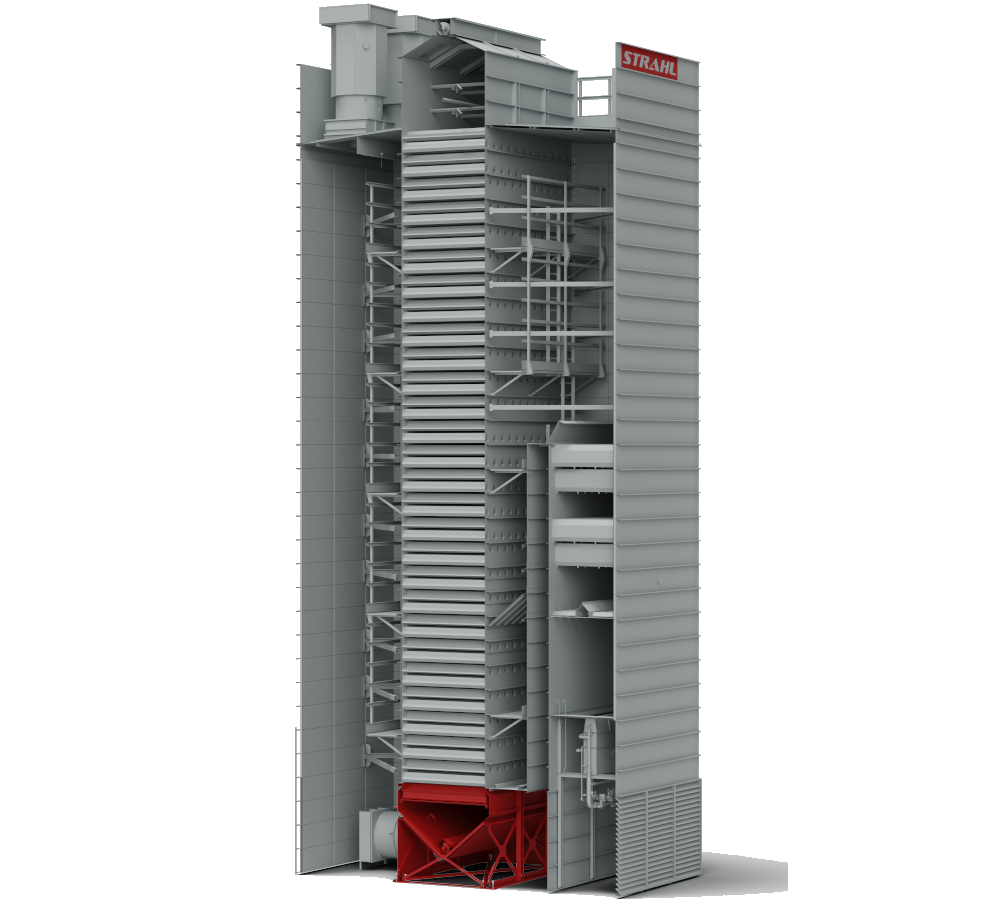

Consists of oscillating shutters that allow for an even and controlled grain discharge.

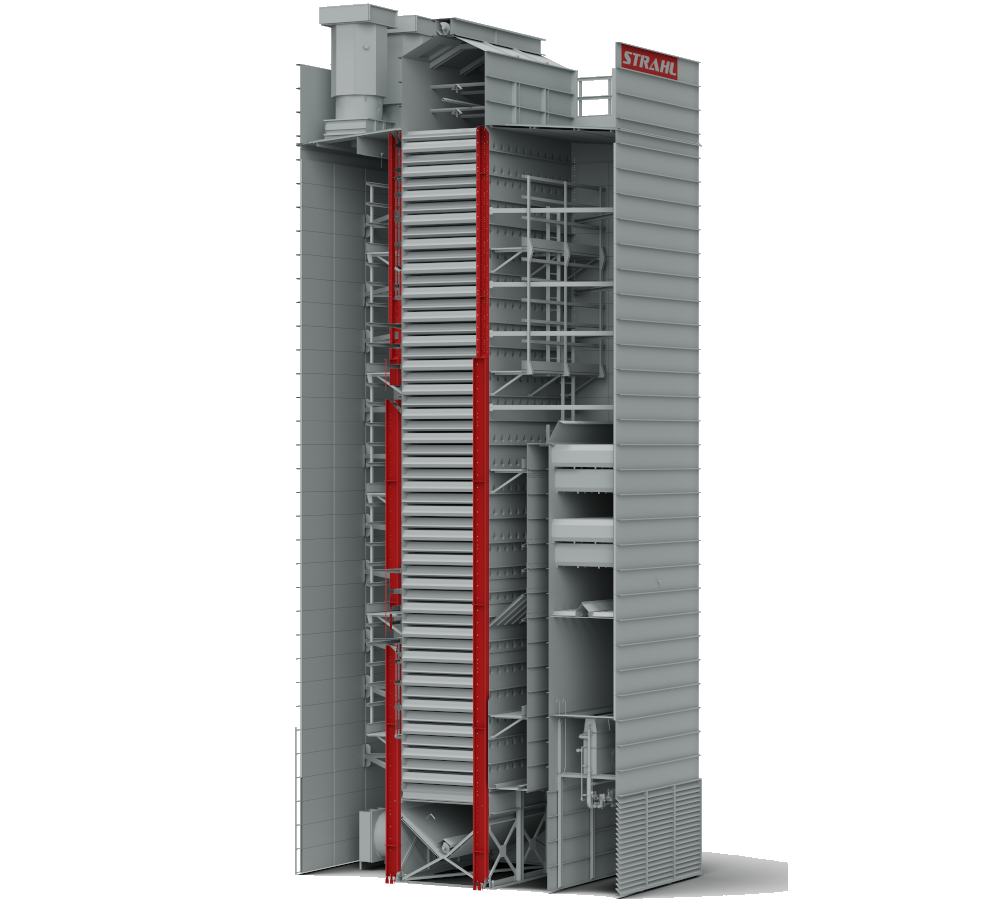

Structural element anchored to the ground that ensures the stability of the dryer, certified to withstand extreme wind, snow and seismic conditions.

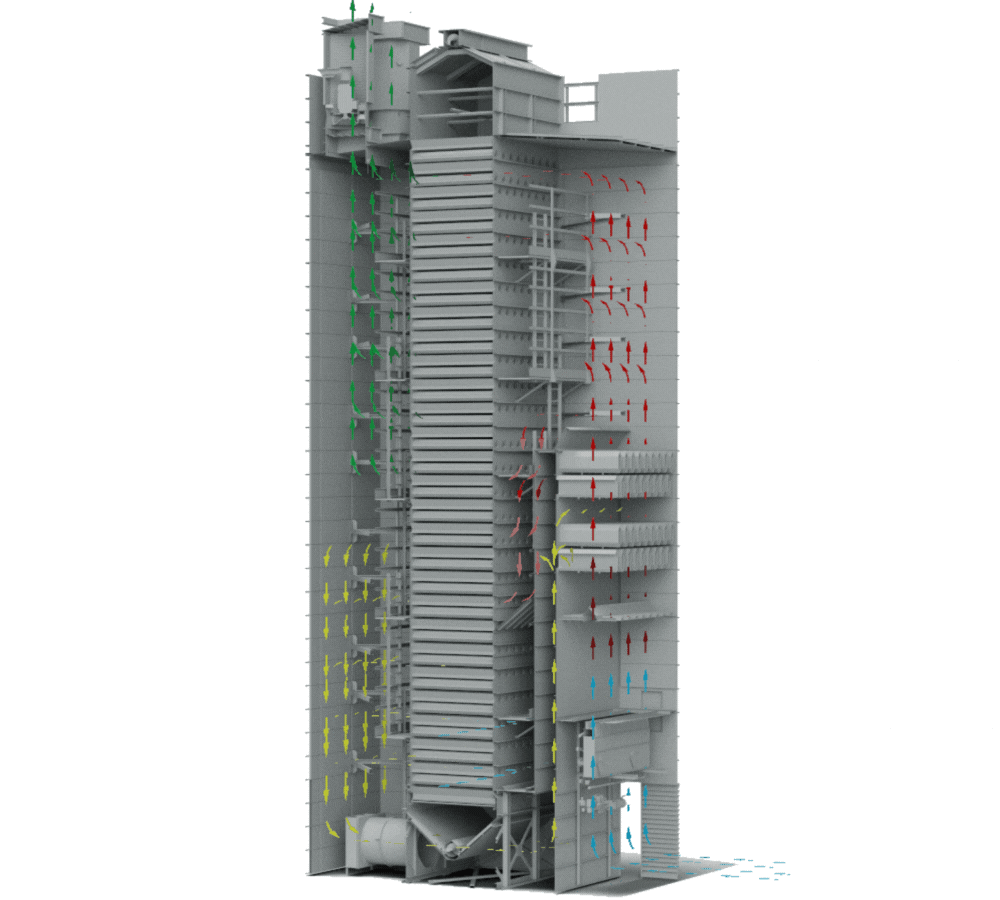

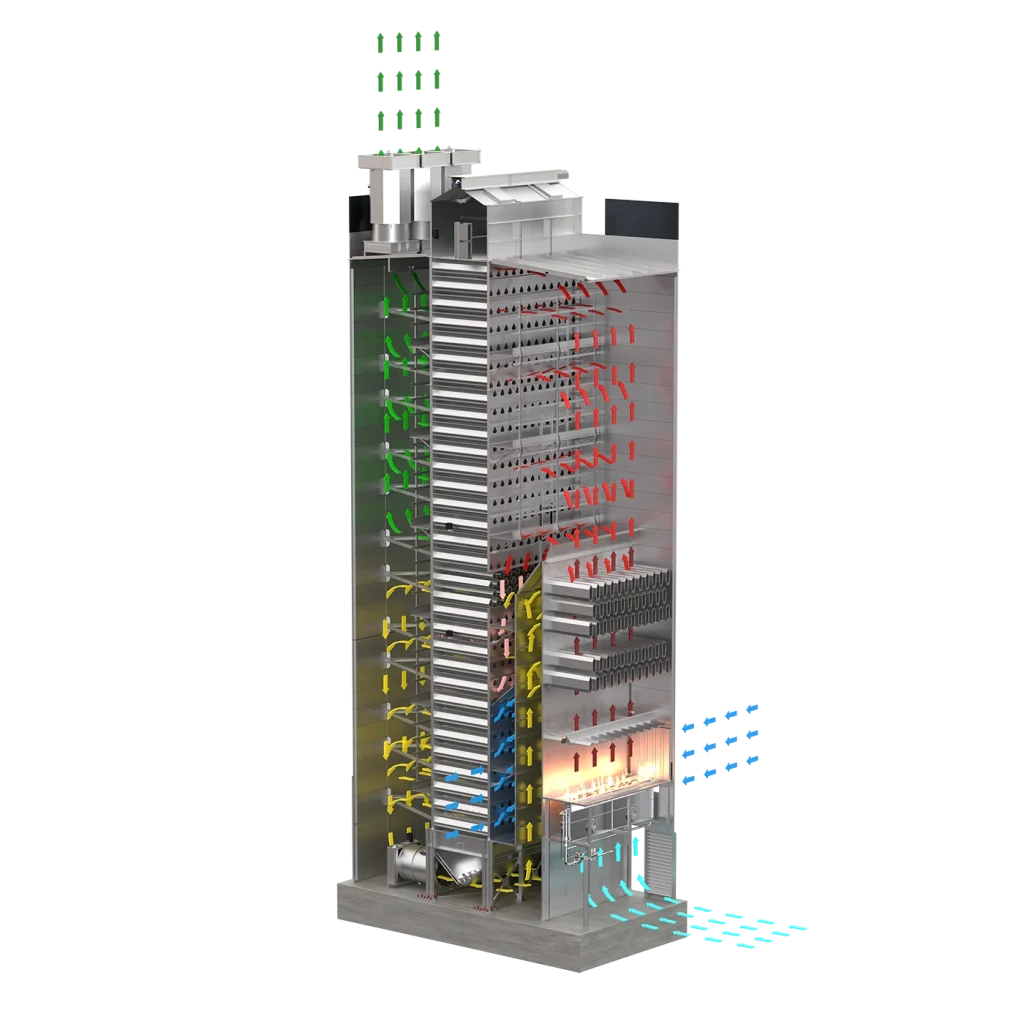

Air intake
External air enters the dryer to be heated and support the process.
Hot air circulation
External air heated by the burner, flows throught the grain releasing internal moisture.
Exhaust air expulsion
Exhaust air is blown out from the dryer, as it is saturated with moisture from the drying process.
Product cooling
Once the final moisture is reached, the burner shuts off. External air flows through the grain, ensuring controlled cooling, which is essential for stabilizing the product and preparing it for extraction and storage.
Customization options: Strahl dryers offer the integration of a
range of optional features to further enhance performance,
control, and precision of the drying process.
Technology designed by STRAHL that provides additional reduction of dust emissions.
System for monitoring product moisture, to ensure further control of the drying process.
Option that includes an inverter allowing regulation of the product extraction speed.
Provides additional temperature probes to more accurately monitor temperatures in the various sections of the dryer.
